SOLAR MODULE MOUNTING STRUCTURE & ACCESSORIES

Solar power production is experiencing significant growth in Jharkhand, India, driven by the increasing demand for sustainable energy resources. As the population continues to rise, the need for alternative energy solutions becomes more pressing. Prakriti Solar is playing a crucial role in this transformation by providing comprehensive solar structure services that cater to the region’s expanding energy needs. The company’s offerings include the design, manufacturing, and supply of solar structures, all tailored to meet specific project requirements.

Prakriti Solar stands out in the industry due to its commitment to quality and precision. Each product is subjected to rigorous inspections at every stage of production, ensuring that it adheres to the highest standards of quality and complies with approved specifications and drawings. This meticulous approach not only guarantees the reliability and durability of their solar structures but also reinforces Prakriti Solar’s reputation as a trusted provider in the renewable energy sector. Through their efforts, they are contributing to Jharkhand’s sustainable development and supporting the broader adoption of solar energy in India.

solar structure in odisha, assam, west bengal

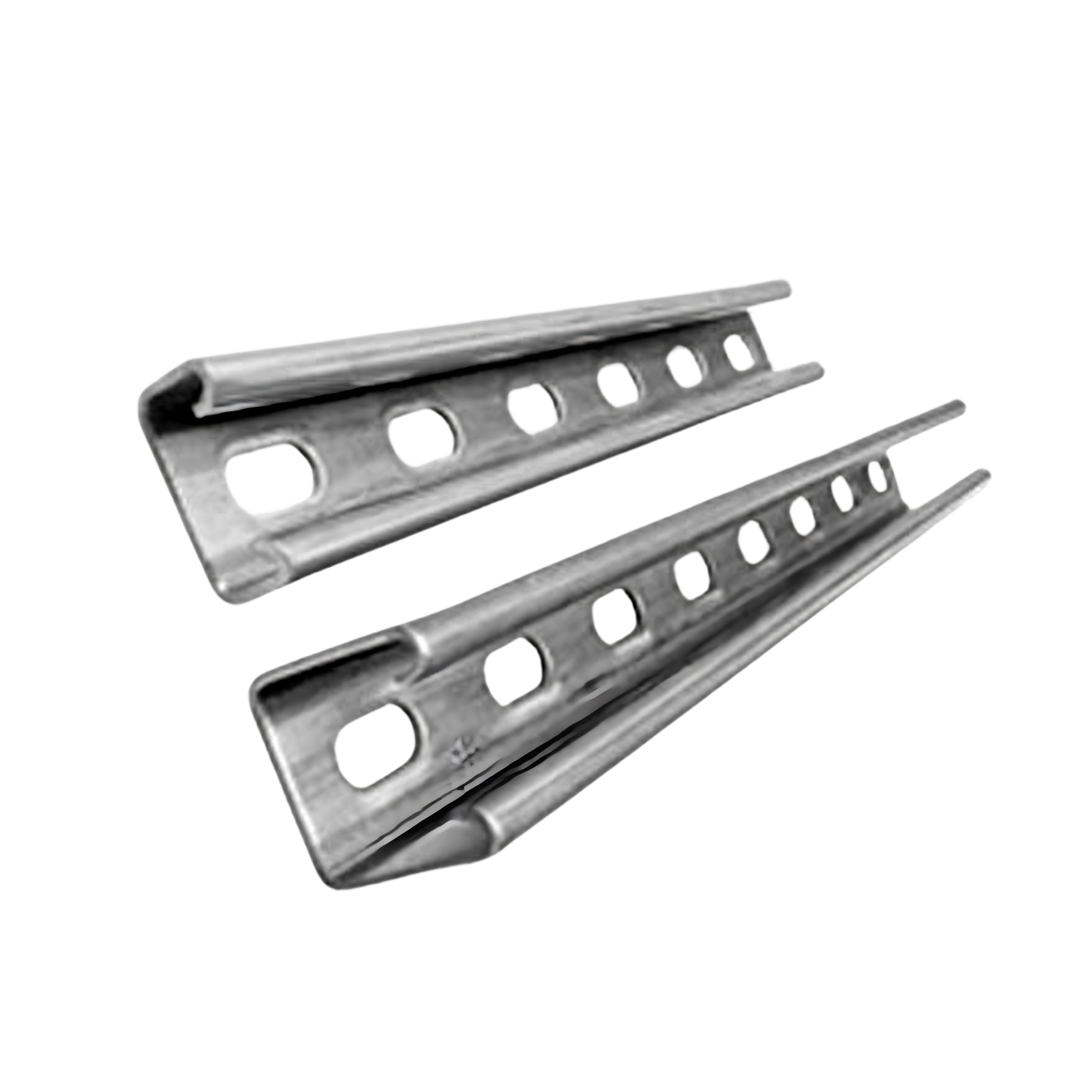

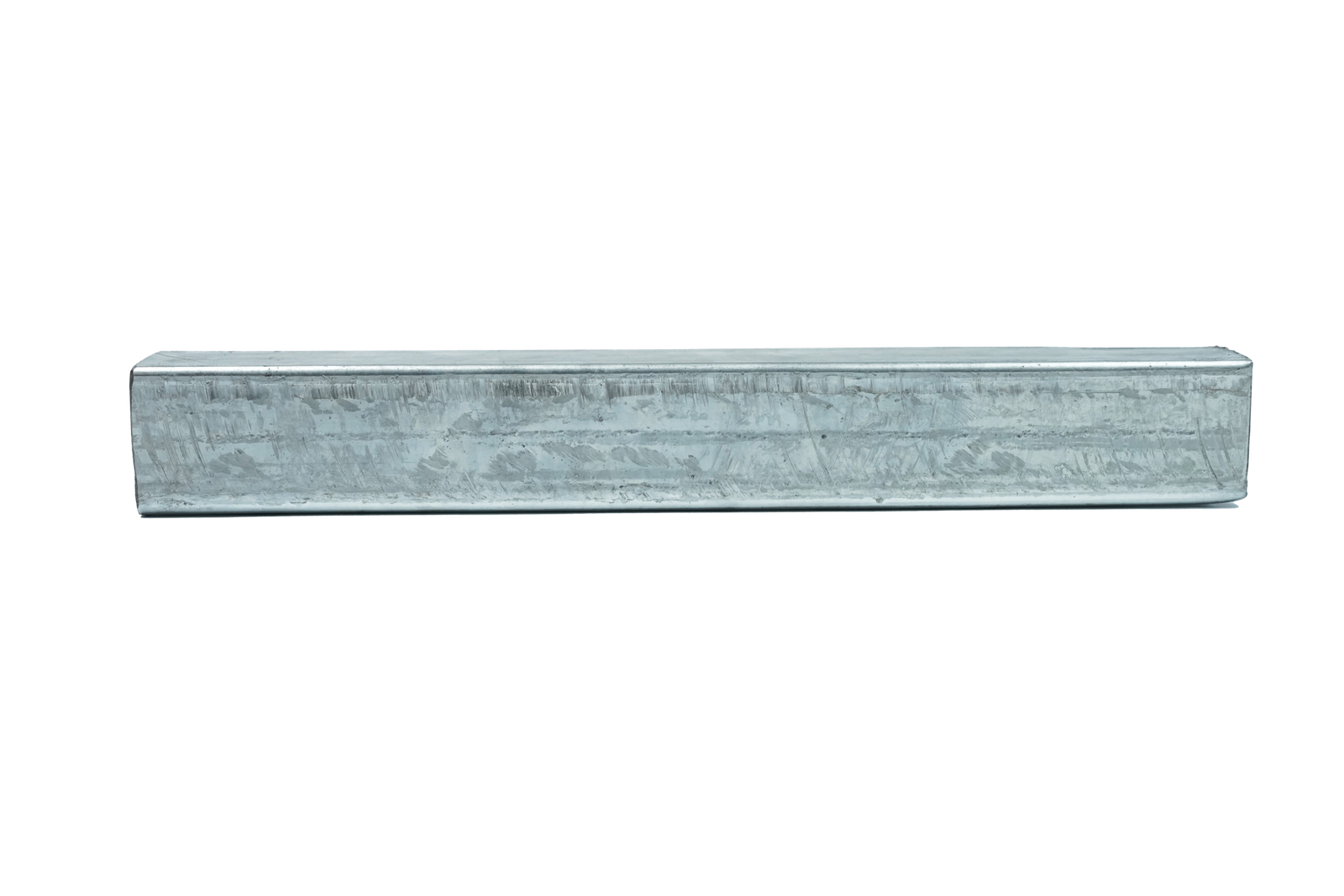

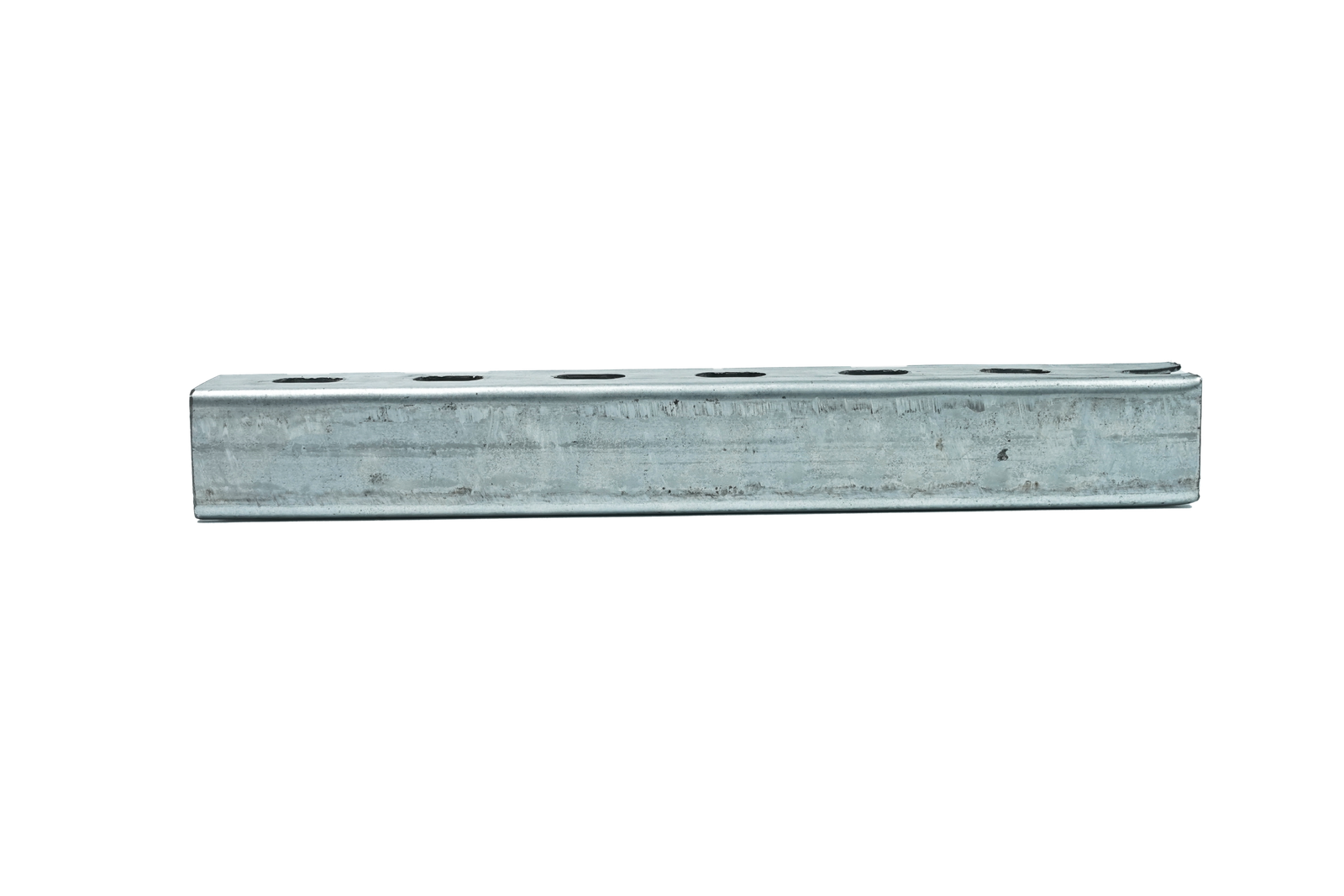

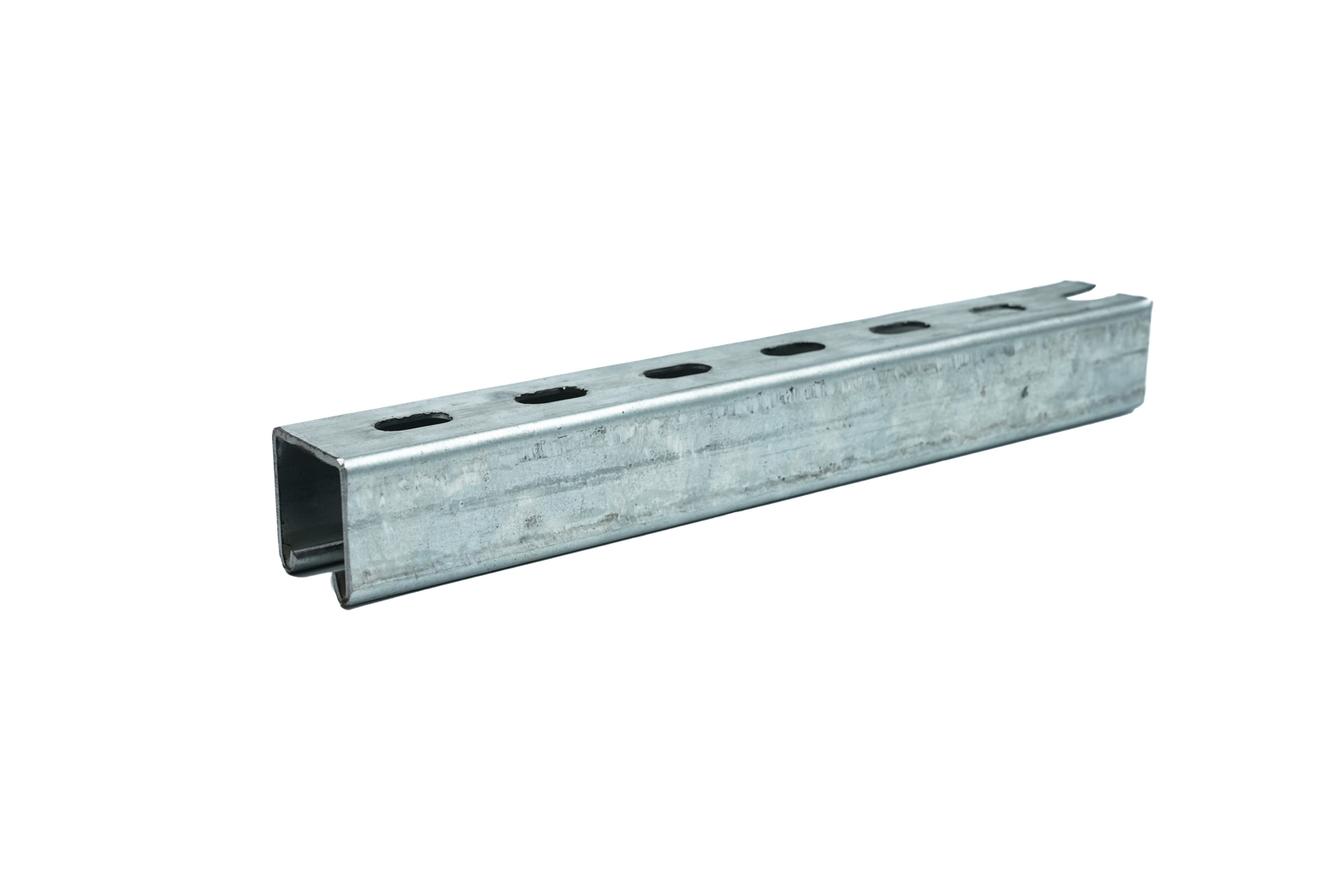

STRUT CHANNEL

LENGTHS AVAILABLE
SIZE
THICKNESS
TYPE
3.0 TO 12 Meters (special Cut To Length Also Available)
41 X 41, 41 X 21 mm
1.6/2.0/2.5 mm
Slotted/Solid

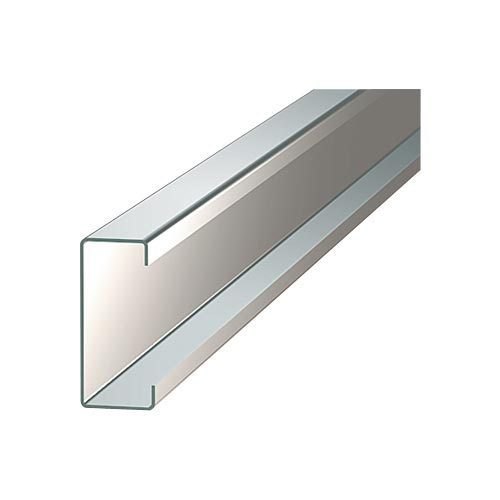

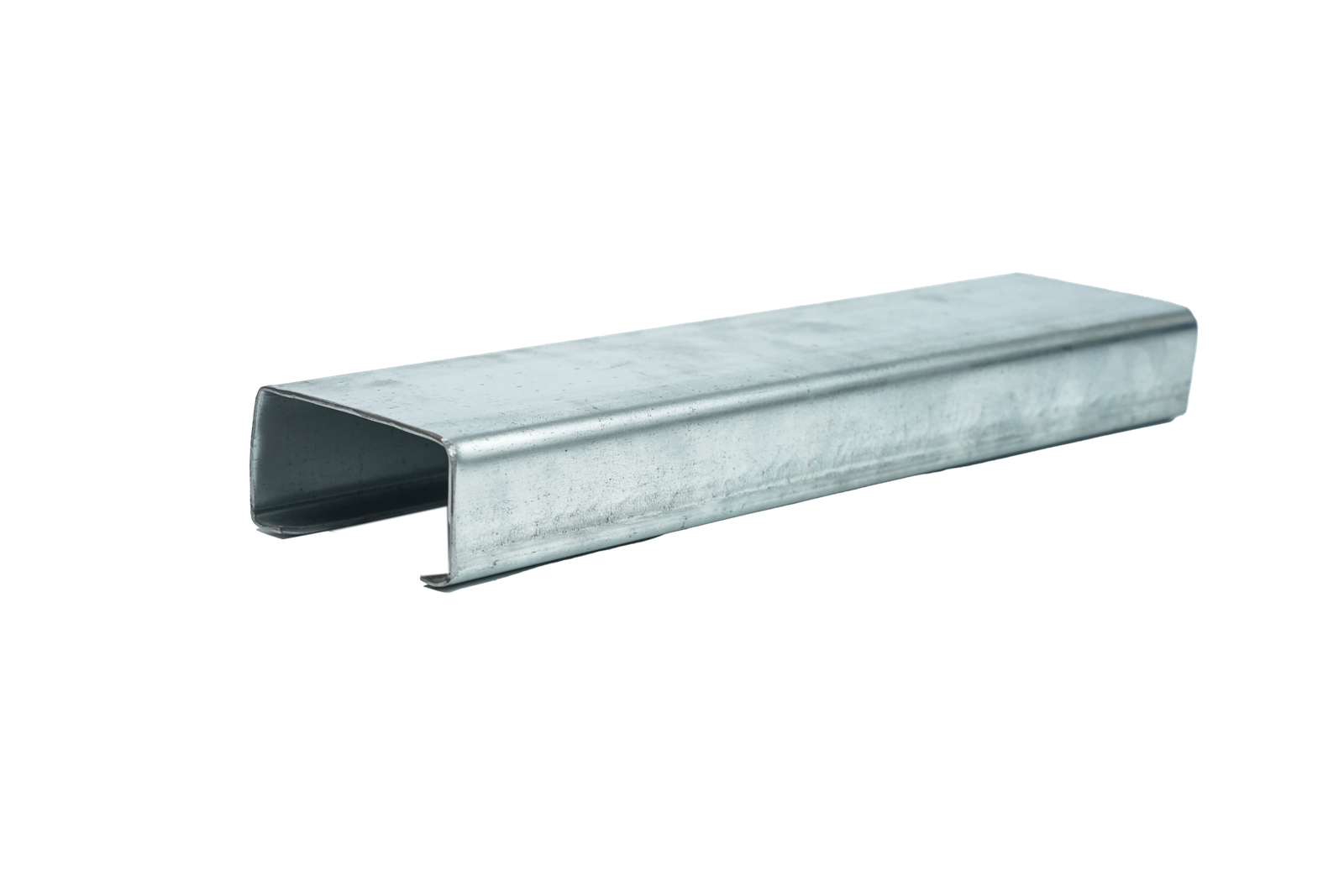

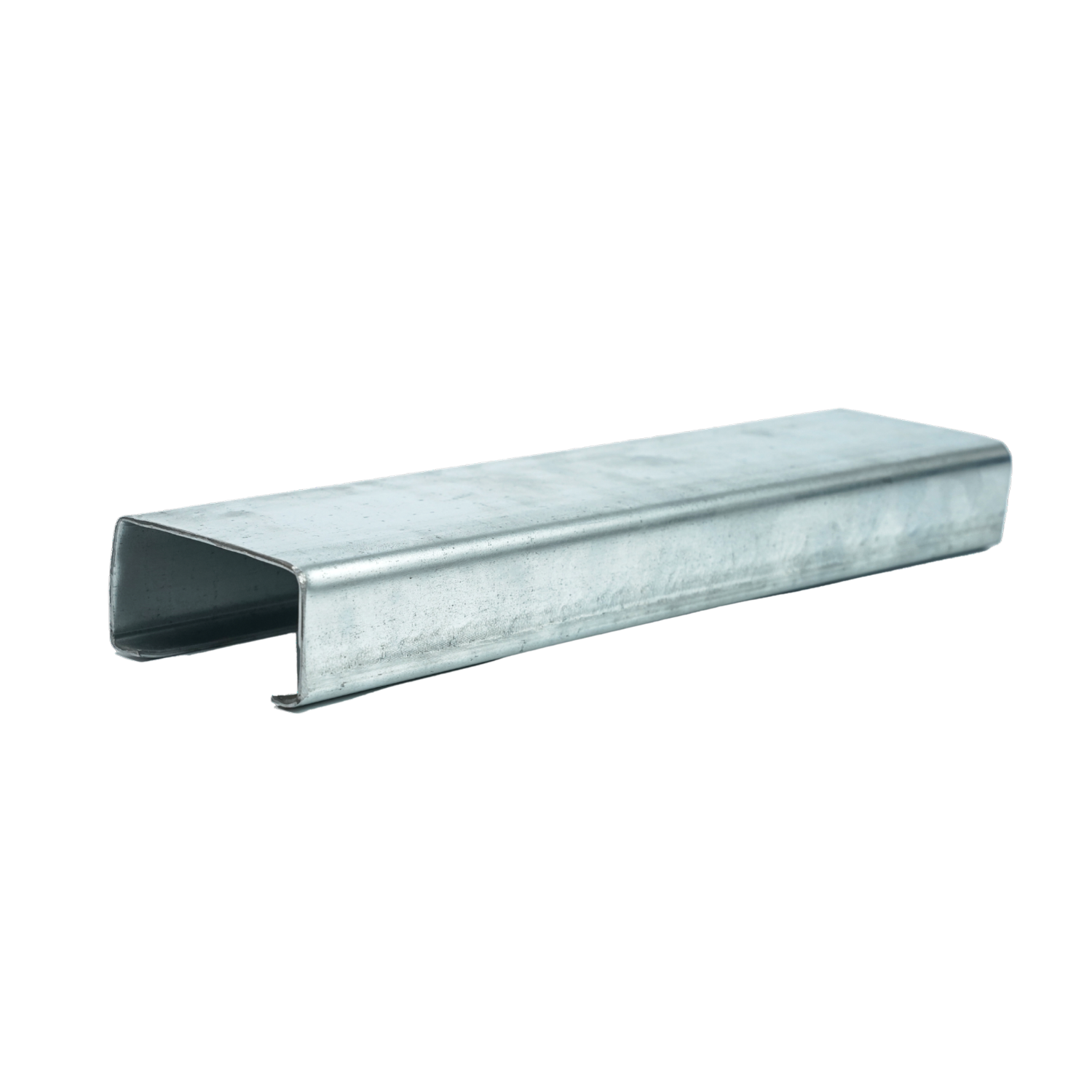

C LIP CHANNEL

LENGTHS AVAILABLE
SIZE
THICKNESS
TYPE
3.0 TO 12 Meters (special Cut To Length Also Available)
60 x 40, 80 x 40 Upto 150 x 70 mm
1.6/2.0/2.5 mm
Slotted/Solid

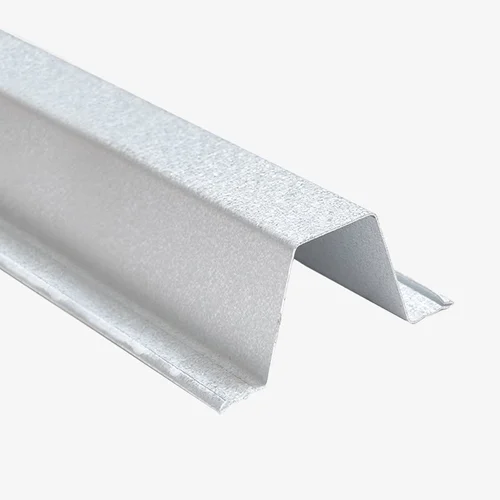

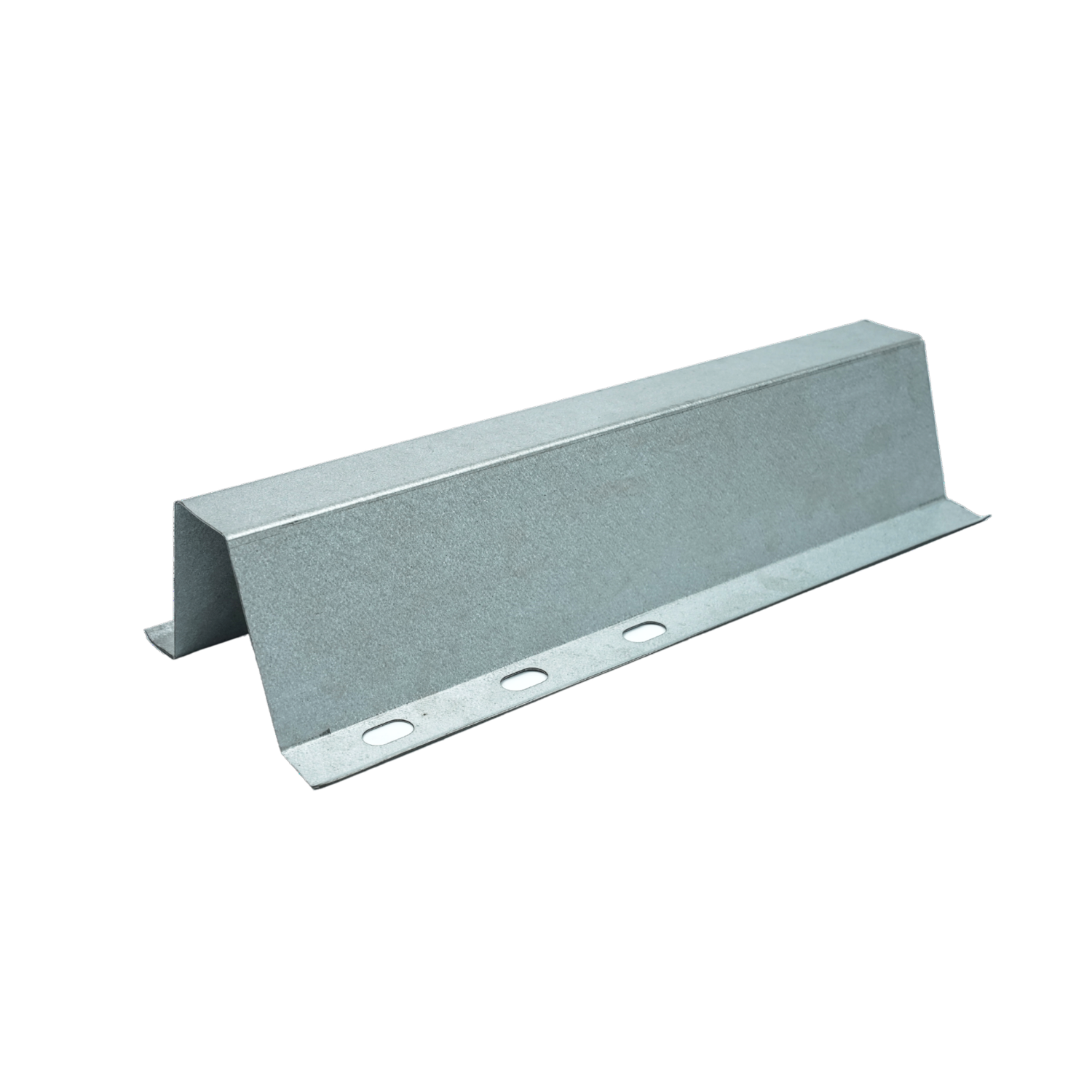

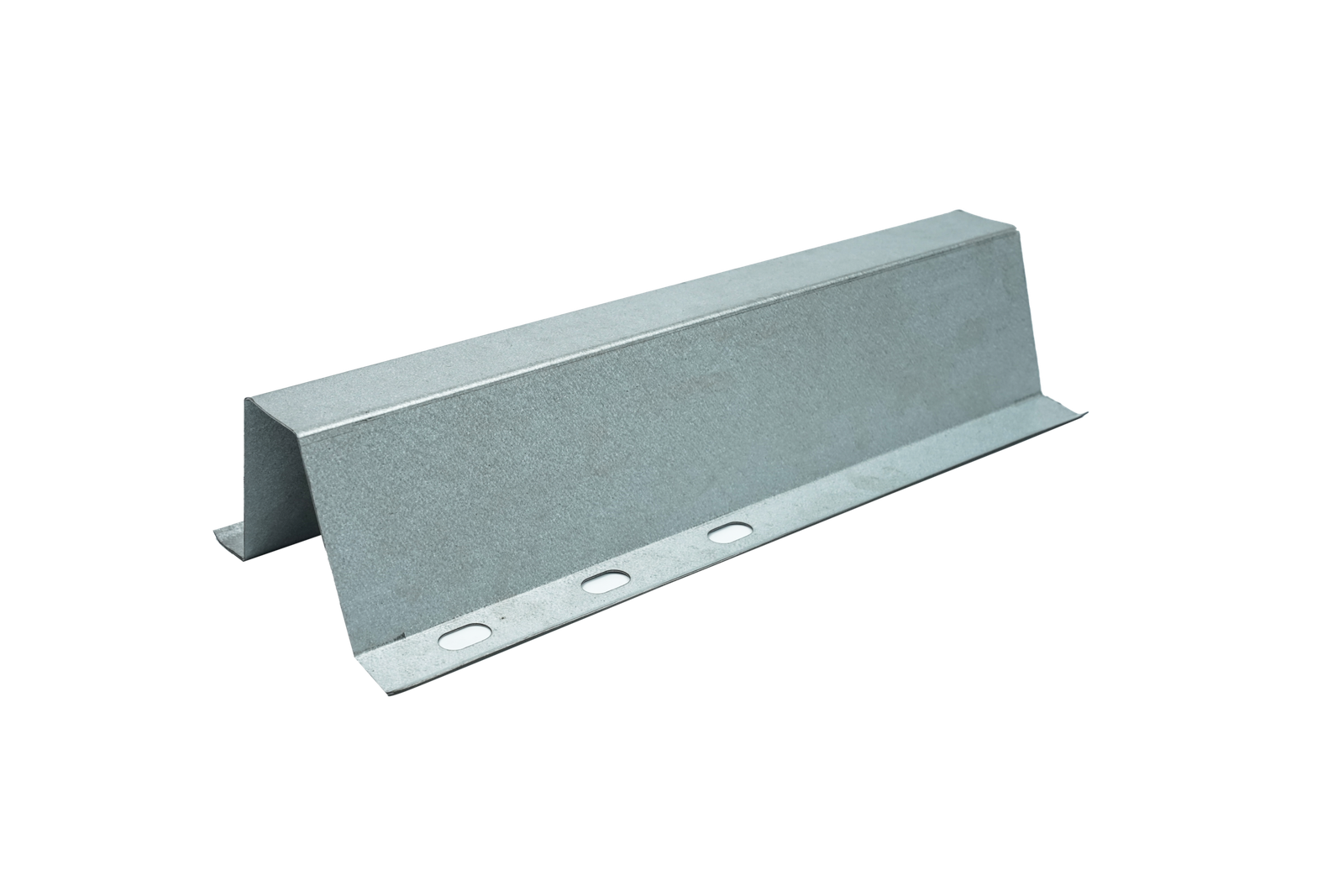

HAT CHANNEL

LENGTHS AVAILABLE
LIP (C)
HEIGHT (A)
WEB (B)
3.0 To 12 Meters (Special Cut To Length Also Available)
20/25/30 MM
60-120 MM
40-80 MM

STRUCTURE ACCESSORIES

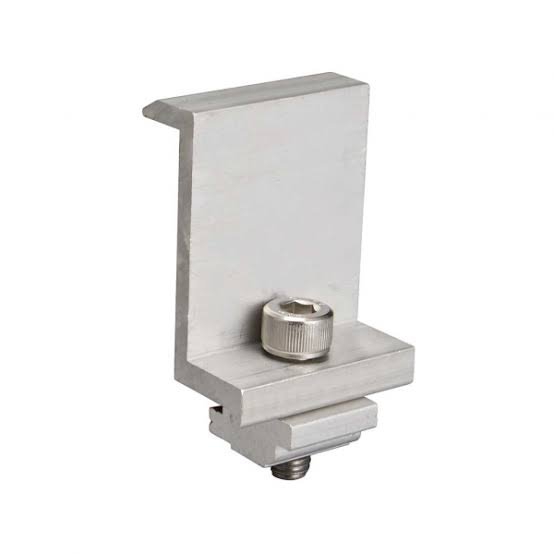

DEGREE CLAMP GL

MIDDLE CLAMP GI ALUMINUM

MIDDLE CLAMP GI ALUMINUM

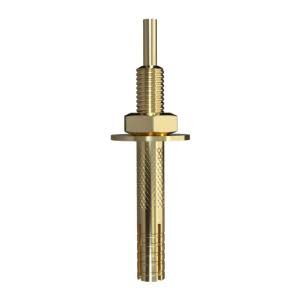

NUT BOLTS GI/SS

SPRING NUT GI

BASE PLATE GI

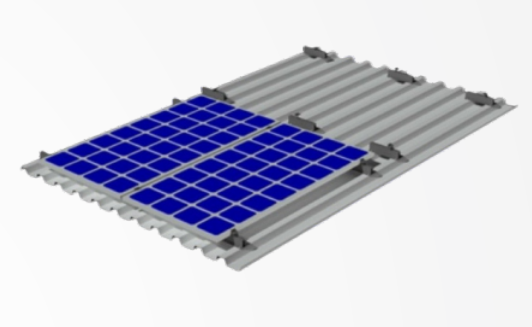

Industrial Roof Solution

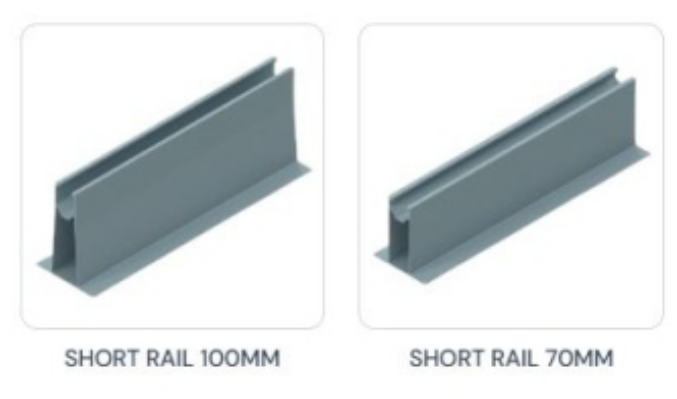

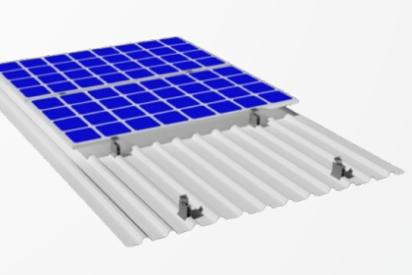

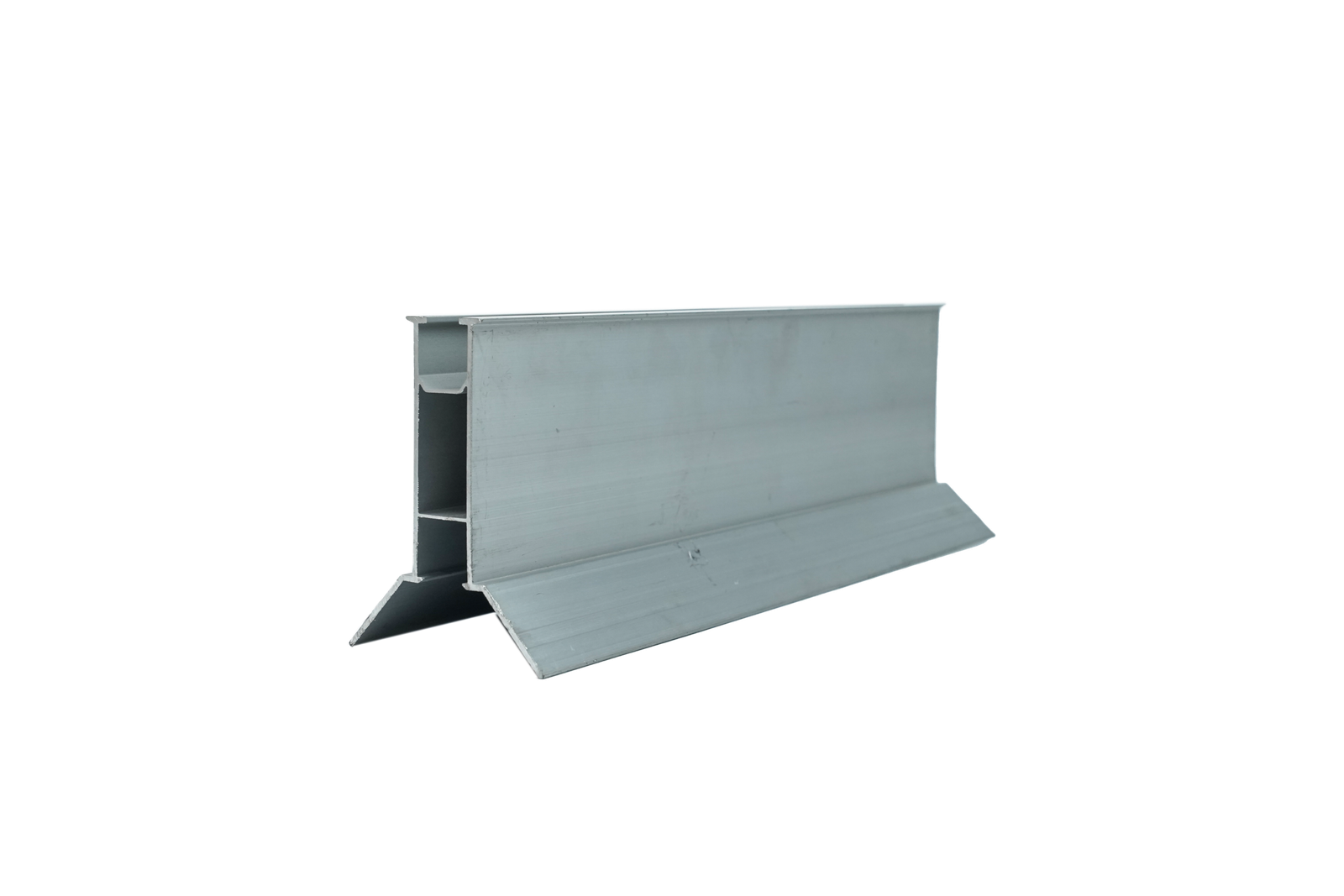

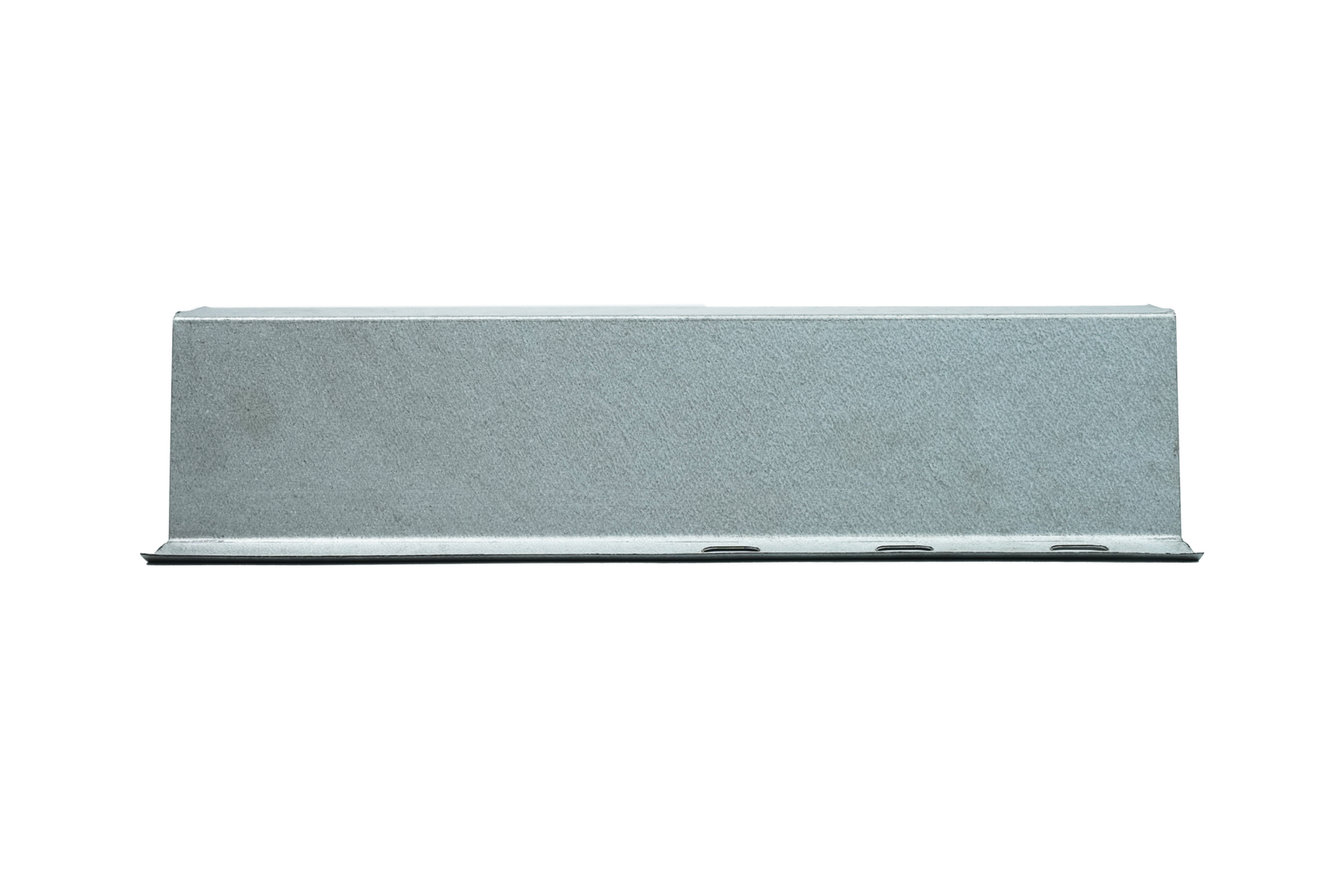

FLUSH MOUNT - SHORT RAIL

SHORT RAIL is metal roof mounting system suitable for Trapezoidal roofing sheet also known as “Tin shed or Industrial shed. This is design for Portrait orientation of modules. It can be used for both penetrative and nonpenetrative method. In penetrative method rivet or self-tapping screw is used along with EPDM to avoid any water leakage. In Non penetrative you can use any metal2metal adhesive (epoxy) for fixing the rail.

Salient Features

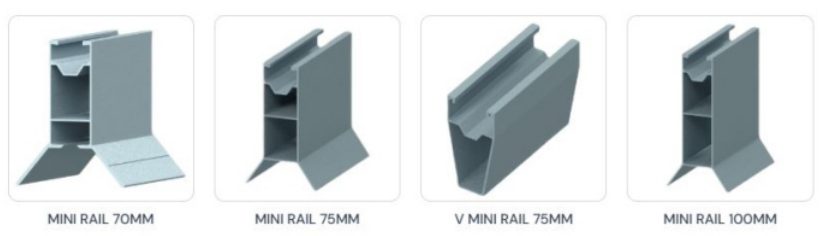

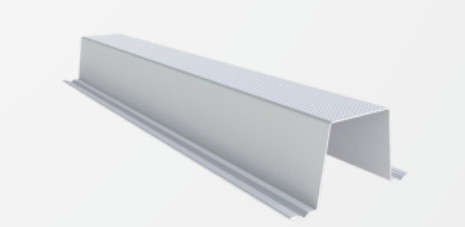

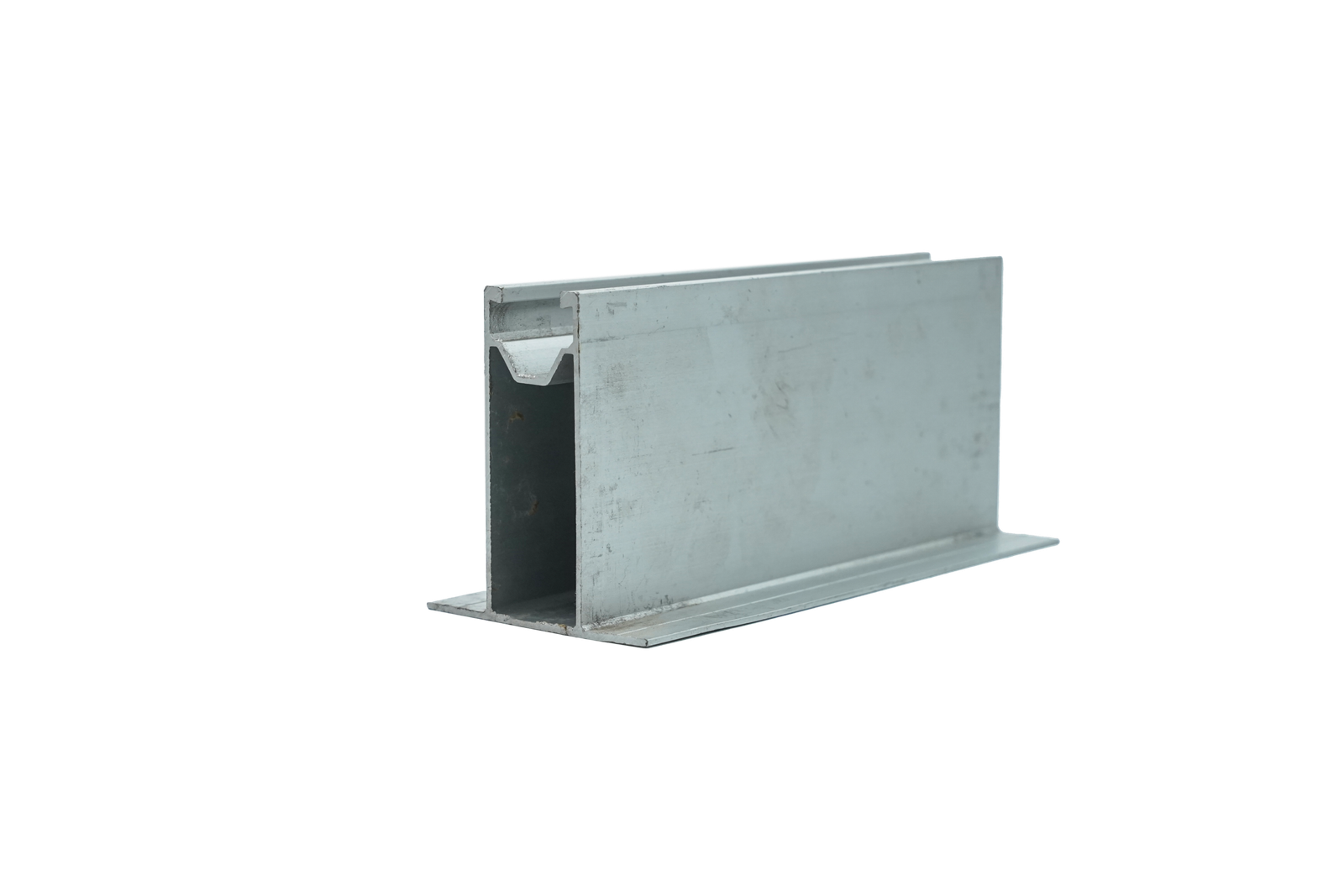

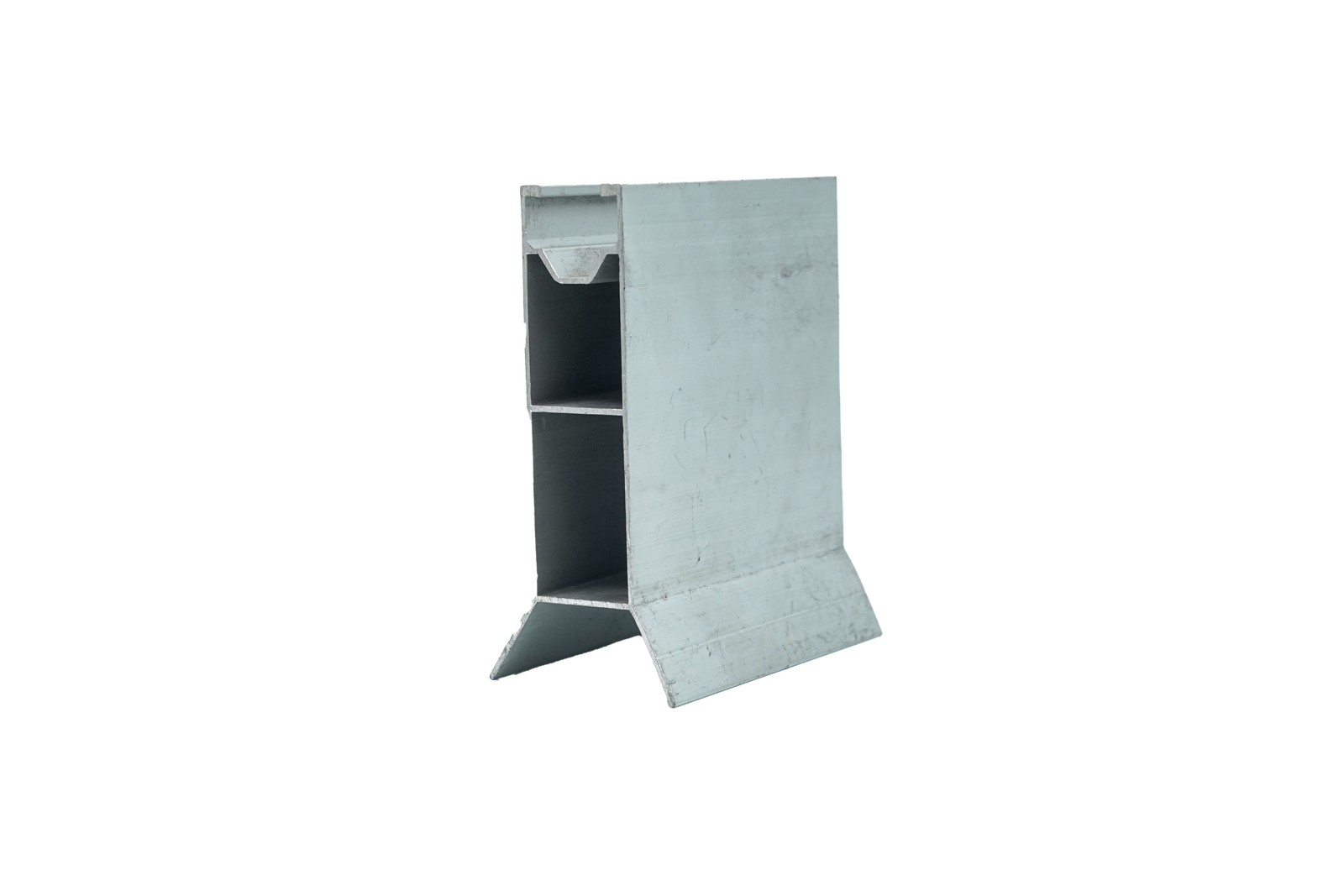

FLUSH MOUNT - MINI RAIL

MINI RAIL is metal roof mounting system suitable for Trapezoidal roofing
sheet also known as “Tin shed or Industrial shed. It can be used for both
penetrative or non-penetrative method. In penetrative method rivet or
self-tapping screw is used along with EPDM to avoid any water leakage.
In Non penetrative you can use any metal2metal adhesive(epoxy) for
fixing the rail.

Salient Features

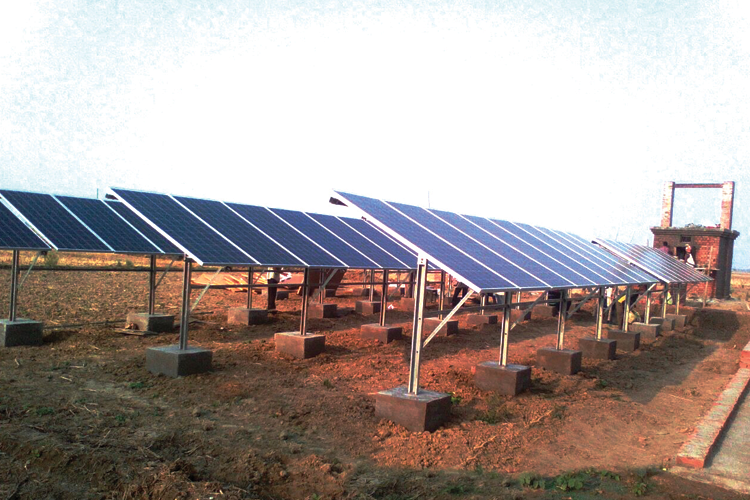

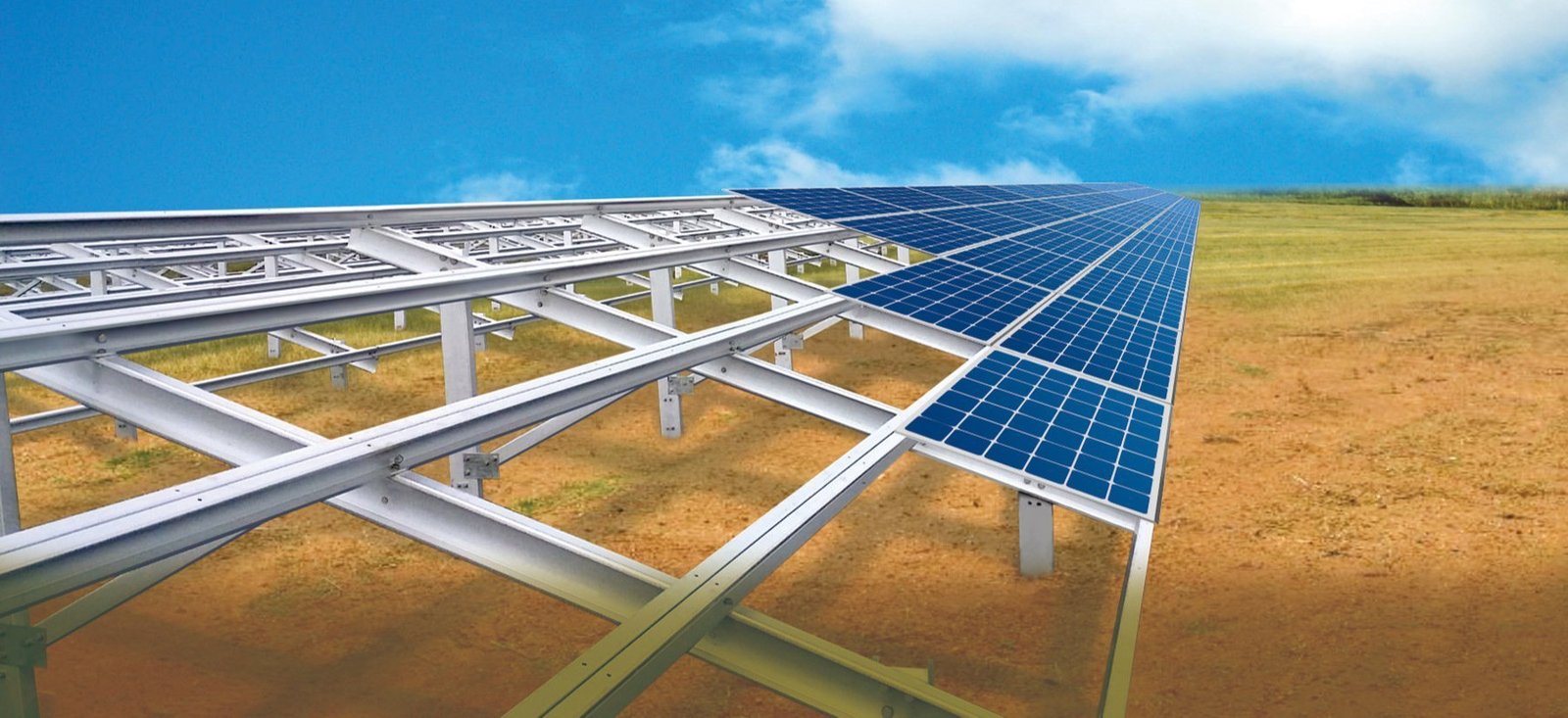

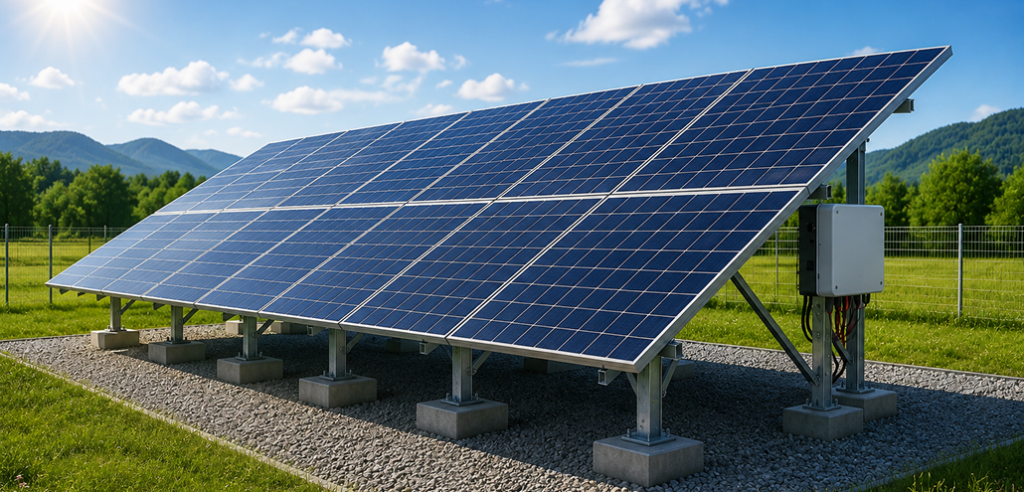

ground mount system

Khetan Group offer effective and economical ground mount
system which suits to any condition. The mounting structure
can be fabricated in pre-galvanized/hot dipped galvanized
as per the design requirement and approval. Apart from
that, we can design the mounting structure with foundation
of concrete Pile/ rammed/ ground Screws as per tilt and
panel arrangements. The equipped production facility with in
house galvanizing unit, permit us lesser turnaround time with
quality control under one roof & dispatch within timeline.

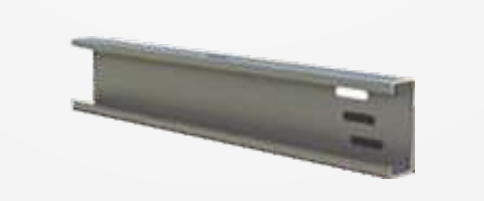

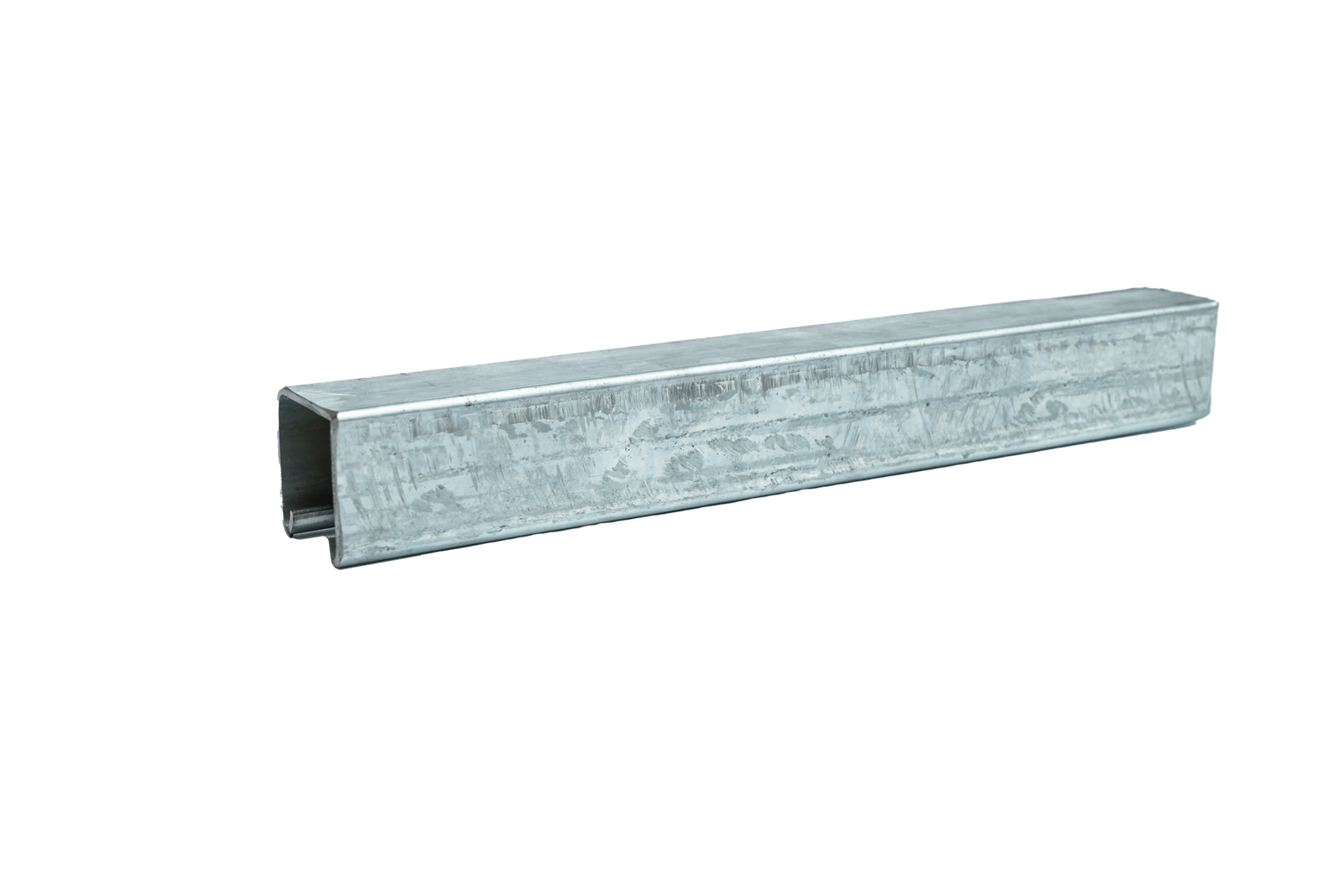

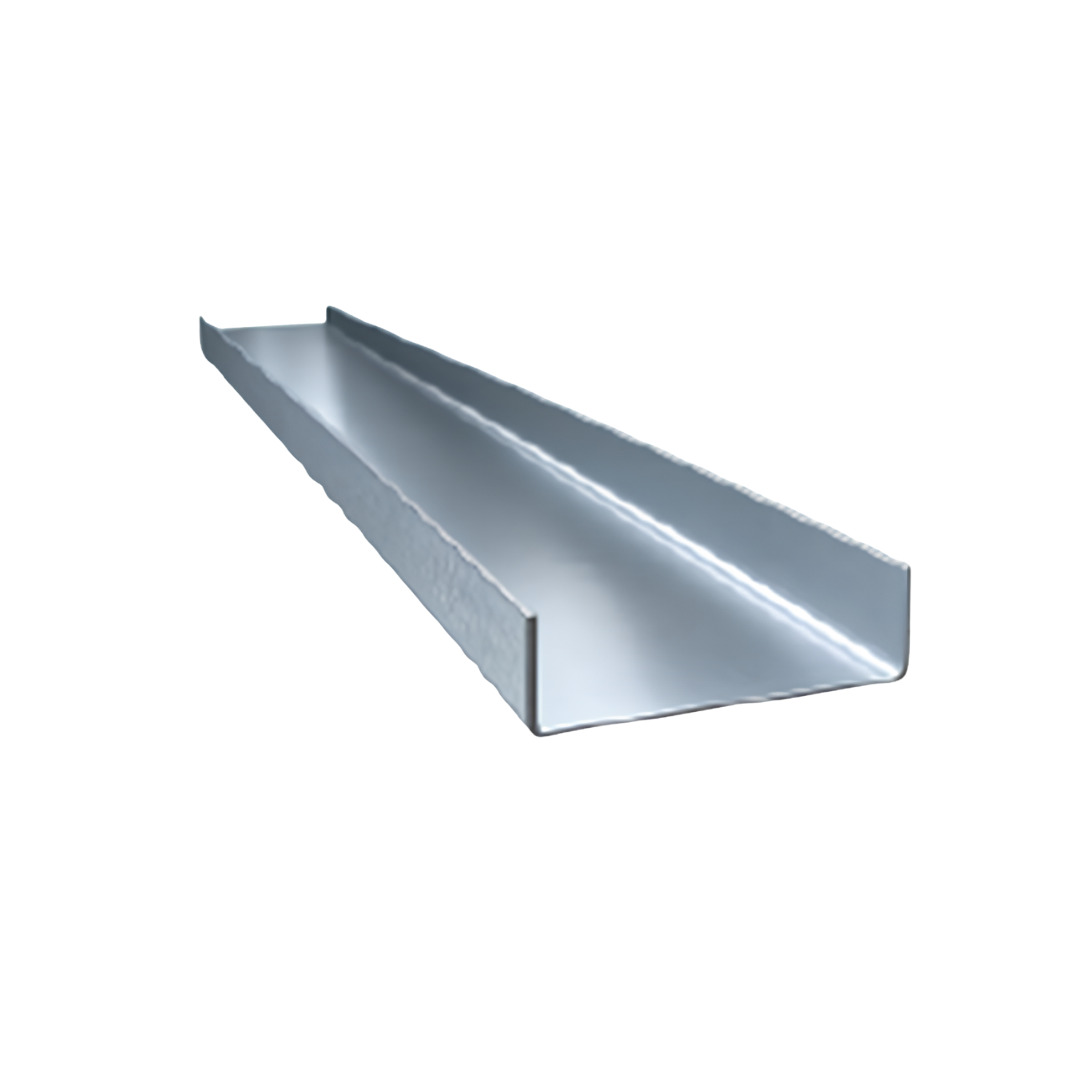

U SECTION

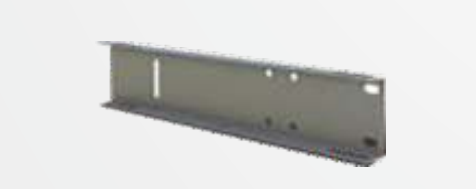

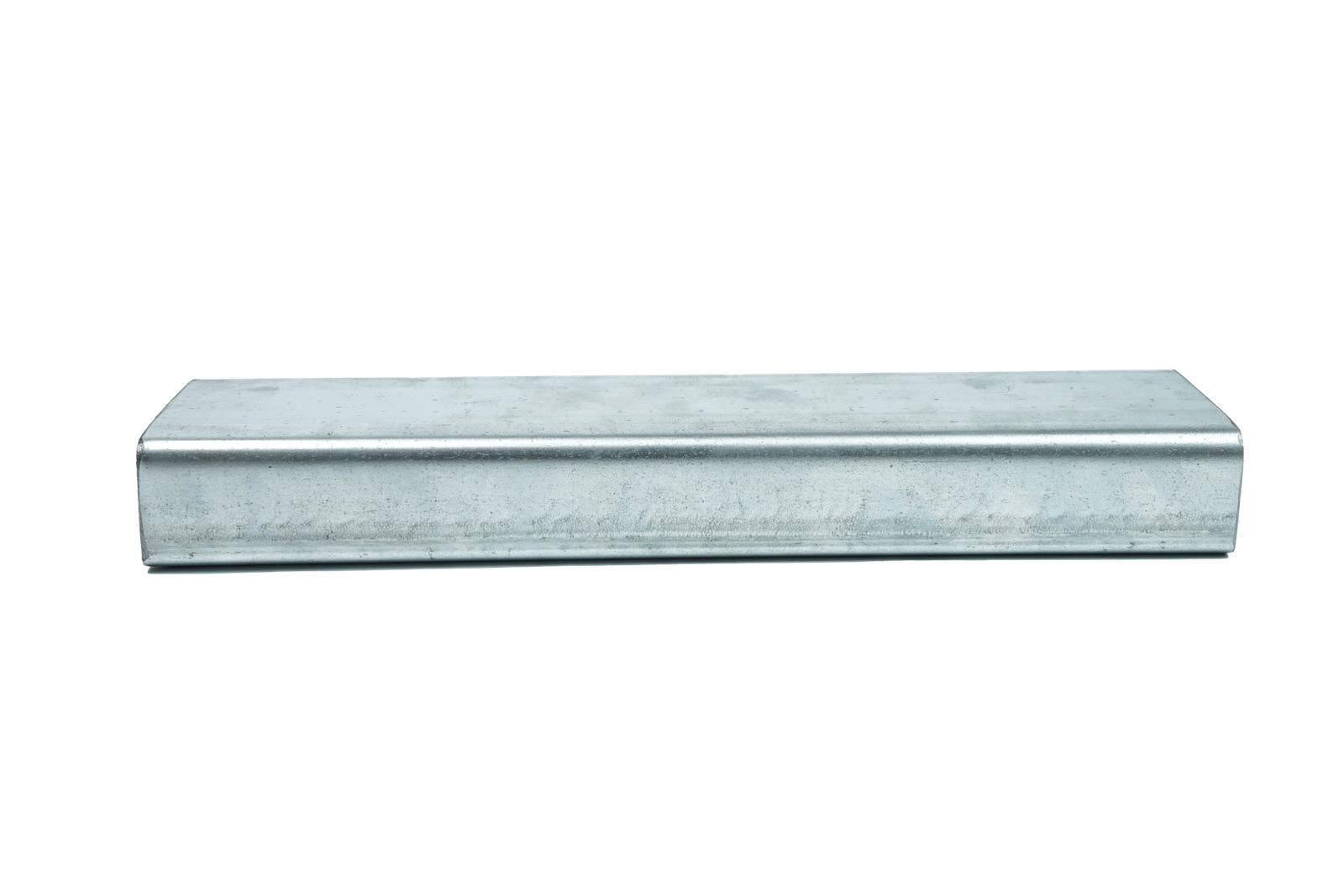

C SECTION

HAT SECTION
